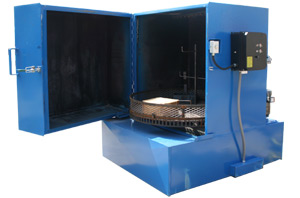

HARRIS TOOL COMPANY MODEL NO. WA-JUMBO-HD
60 X 60 FRONT LOAD SUPER HEAVY DUTY WASHER WITH FOLLOWING MACHINE SPECIFICATIONS:

• TOGGLE SWITCH OPERATED STAINLESS DISC TYPE OIL SKIMMER
• 27 KW ELECTRIC HEATER
• REMOVEABLE TANK DEBRIS SCREEN (400 SQ. IN.)
• 15 HP CAST IRON VERTICAL SEALESS PUMP W/SCREEN(315 GPM @ 55 PSIG)
• 60 MIN.SPRING WOUND WASH TIMER
• 175 DEGREES F PROCESS THERMOSTAT CONTROLLER
• CRANE LOAD SLOT
• FORK LIFT CHANNELS FOR PORTABILITY
• 42 REPLACEABLE/CLEANABLE SPRAY JET NOZZLES
• 400 GALLON CLEANING SOLUTION TANK
• LOW WATER SHUT-OFF SWITCH
• 5,000 LB. LOAD CAPACITY
• 60” INSIDE HEIGHT
• 1/2 HP GEARMOTOR/GEAR DRIVEN 60” DIA. HD TURNTABLE/TRUCK HUB ASSY. & JOG SWITCH
• 240/480/60/3 ELECTRICAL REQUIREMENTS(PLEASE SPECIFY VOLTAGE)
• INTERMEDIATE SPRAY BAR W/ NOZZLES
• ½” PIN/KNUCKLE HINGED SEALESS DOOR W/ HANDLE, LATCH, AND SAFETY SWITCH
• 10 GAUGE TANK/12 GAUGE DOOR & CABINET STEEL PLATE MATERIAL W/ PRECAUTION BLUE PAINT
• 90” OVERALL HEIGHT
• 80”W X 80”D FLOOR SPACE REQUIRED W/ DOOR CLOSED
• 3800 LBS. SHIPPING WT.

HARRIS TOOL COMPANY MODEL NO.S WA-JUMBO
FRONT LOAD WASHER OPTIONS:

• 6” DIA. CABINET VENT W/ INSIDE FLAP PLATE
• FILTER READY PLUMBING
• FILTER SYSTEM
• 480V/60HZ/3PH ELECTRICAL REQUIREMENTS
• 24 HR./7 DAY HEATER TIMER
• 24 HR./7 DAY SKIMMER TIMER
• AUTOMATIC WATER FILL
• TANK INSULATION
• 2” REMOVEABLE STANDPIPE/PARTS TREE(HD MODELS)
• CRANE LOAD SLOT
• NATURAL/LP GAS HEAT SOURCE
• WA-JUMBO-HD 60 X 60 NATURAL/LP GAS HEAT SOURCE W/ 6” FLAME TUBE
• SS CABINET, DOOR, TURNTABLE, PLUMBING, & SPRAY JET NOZZLES
