TLW-2 Top Load

Model

Load Height

Turntable Diameter

Work Load

Water Capacity

Material of Construction

Heating Source

Power Requirements

Shipping Weight

TLW-2

31"

25"

500 Lbs

35 Gallons

Mild steel

4.5 KW

220/440 1Ph/3 Ph

400 Lbs

TLW-2SS

31"

25"

500 Lbs

35 Gallons

304 Stainless

4.5 KW

220/440 1Ph/3 Ph

400 Lbs

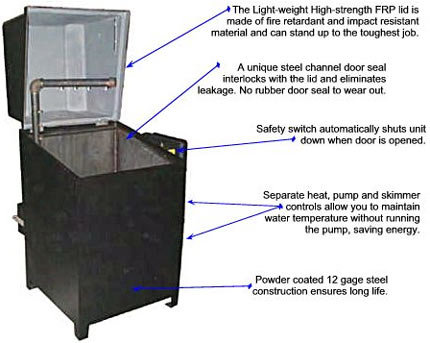

  • The Light-weight High-strength impact resistant FRP lid.
  • Mechanical lid seal. No rubber seal to wear out.
  • Easy to operate controls
  • Gear driven turntable. No tires, belts or brushes
  • Heavy duty 12 gage steel construction
  • 3 H.P. vertical pump
  • Stainless steel oil skimmer
  • Low water shut-off switch
  • Durable Powder coat finish

  • THE TLW LINE OF TOP-LOADING WASHERS PROVIDES AN ENVIRONMENTALLY FRIENDLY ECONOMICAL METHOD OF CLEANING SMALL PARTS WHILE REMAINING AFFORDABLE. THESE UNITS ARE IDEAL FOR AUTOMOTIVE SHOPS AND BATCH CLEANING OF MACHINED PIECES AND PARTS.


    MACHINE SPECIFICATIONS:

    TLW-2

    Machine Area Footprint

    54"Hx30"Wx37"D

    Inside Working Height

    31"

    Basket Dimensions

    25" Dia.x9"Deep

    Turntable Drive

    Gear Driven

    Pump Motor

    3Hp

    Power Source

    220 Volt 1Ph Optional 240/440 3ph

    Heat Source

    4.5KW w/Thermostat

    Pump/Motor Output

    50 PSI--26 GPM

    Work Load

    500 Lbs.

    Solution Capacity

    32 Gallons

    Door Seal

    Mechanical

    Cabinet Construction

    12 Carbon Steel Optional Stainless Steel

    Lid Construction

    Impact Resistant Plastic

    Spray Nozzles

    17

    Shipping Weight

    400 Lbs

    Warranty

    One year parts


    OPTIONS:

    DESCRIPTION

    IMSB-1

    INTERMEDIATE SPRAY BAR

    PTO-01

    PARTS TREE

    F-2

    FILTER SYSTEM

    TC-24

    24 HOUR TIMER
